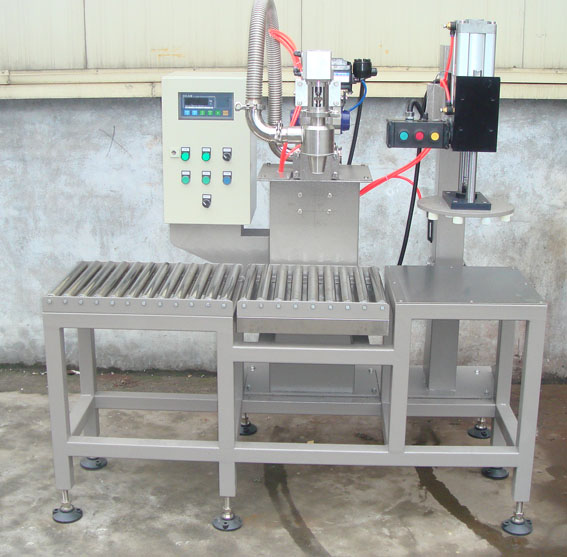

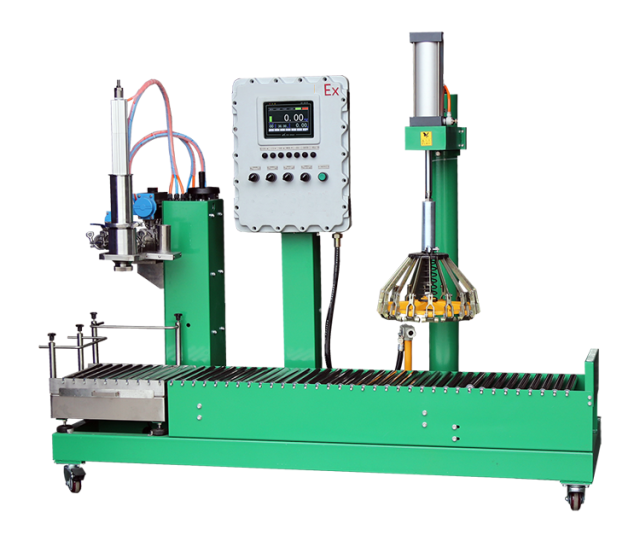

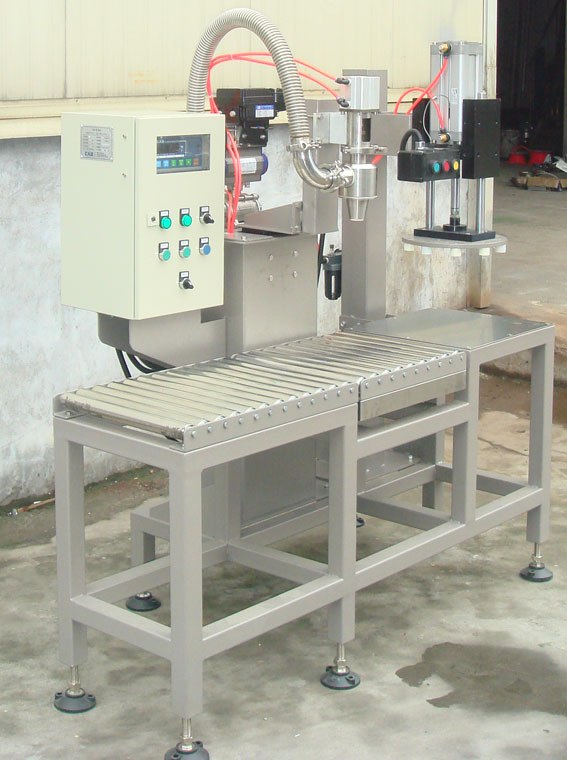

50L pail/can paint filling machine introduction:

It is mainly used for automatic quantitative filling of thickened liquids such as iron barrels, plastic rock wool, latex paint, coatings, mortar, putty, etc. It can also be used for automatic filling of liquid materials in food, medicine, chemical and other industries. For example: lubricating oil, edible oil, alcohol, disinfectant, ink, chemical paint, coating, etc.

Features:
1. The system adopts foreign advanced technology, and the weighing filling machine produced has high measurement accuracy and is not affected by the material.

2. Through fast and slow feeding valves, both the filling speed and filling accuracy can be improved.

3. Wide measuring range, adjustable within 10-100 kg.

4. The filling head adopts an anti-drip device, there is no bubble when filling real stone paint and latex paint, and the canning effect is good.

5. Automatically control feeding, equipped with pneumatic clamping cover and pneumatic pressing plate device, filling volume* can store more than 10 formulas for easy switching.

Operating principle:
Continuous stable feeding way: requirements for material (in transporting pump or hopper pressure feed)
Feed mechanism by electromagnetic valve by cylinder respectively perform rapid and slow feeding.

Filling way: ordinary regular filling and lifting submersible filling (choose according to need to order)
Weighing system by weighting stents, sensors, weighing platform, unpowered roller, frame support, filling system control.

Pneumatic control system: fast and slow feeding valve.
Filling nozzle height can be adjusted through at the top of the handwheel.

Special note: in the process of using the weighing platform does not allow the additional external force.

50L pail/can paint filling machine technical parameters:
