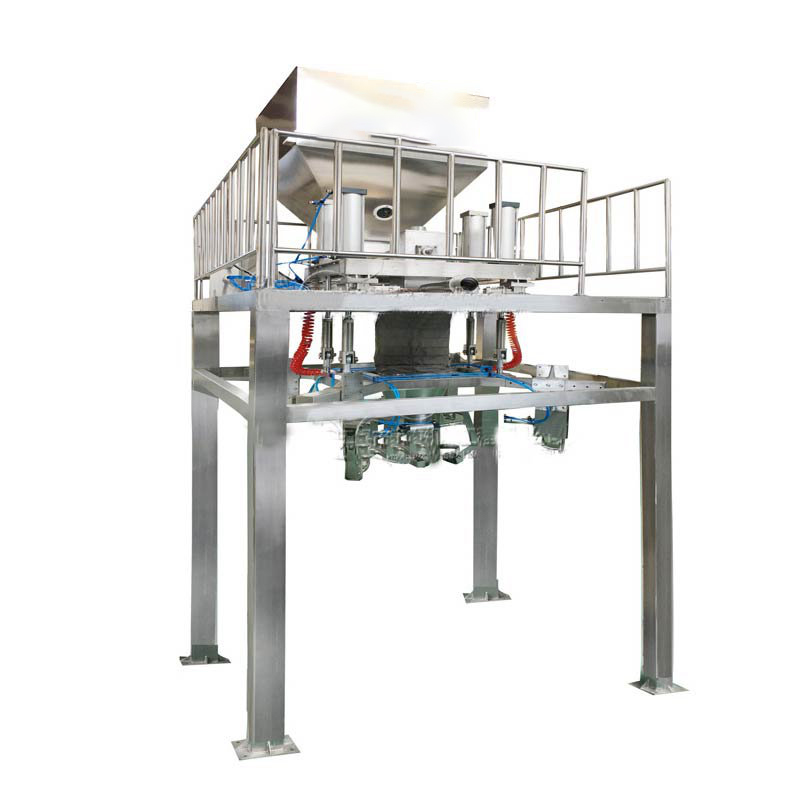

GZM is the English acronym for pneumatic valve port packaging equipment. GLZON Group has designed and manufactured this equipment and applied it to the powder packaging workshop 35 years ago. Our stan
| Parameter | Standard Model | High-Speed Model | Test Standard |
|---|---|---|---|
| Bag Capacity | 5-50 kg | 10-100 kg | ISO 2378 |
| Filling Accuracy | ±0.2% | ±0.15% | OIML R61 |
| Max. Speed | 200 bags/h (25kg) | 240 bags/h (25kg) | EN 619 |
| Air Consumption | 450 NL/min | 550 NL/min | ISO 8573-1 |
| Dust Emission | ≤2.5 mg/m3 | ≤1.8 mg/m3 | NIOSH 0600 |
2.1 Precision Filling System
Dual-Stage Pneumatic Cylinder
Primary cylinder: ?125mm (fast-fill phase)
Secondary cylinder: ?80mm (dosing phase)
Force Control: 0.1-1.0 MPa adjustable pressure
2.2 Valve Bag Sealing
Inflatable Seal Mechanism
EPDM rubber collar (-40°C to 120°C)
0.6 MPa operating pressure
Leak Rate: <0.01% (ASTM F3287 verified)
2.3 Control System
Pneumatic Logic Controller: ISO 15407-1 compliant
HMI Interface: 7" touchscreen with I/O diagnostics
Auto-Calibration: Pressure compensation for altitude changes
| Component | Material/Standard |
|---|---|
| Contact surfaces | 316L stainless steel (Ra≤0.8μm) |
| Frame | S355JR carbon steel (EPOXY coating) |
| Valve seal | FDA-grade EPDM (21 CFR 177.2600) |
| Safety systems | Emergency vent valve + pressure relief |
Zero Product Contamination
Air-only actuation (no lubricants)
Explosion Safety
ATEX Category 3G/3D compliant
Maintenance Reduction
50,000-hour seal life (2× industry standard)
Rapid Changeover
≤3 min for 5kg?50kg adjustment
| Material | Bulk Density | Special Adaptation |
|---|---|---|
| Cement | 1,200-1,500 kg/m3 | Anti-caking vibrator |
| Food Powders | 500-800 kg/m3 | CIP washdown design |
| Chemical Additives | 400-600 kg/m3 | Conductive grounding |
| Mineral Powders | 1,600-2,000 kg/m3 | Abrasion-resistant liners |
Certifications: ATEX 2014/34/EU, CE, ISO 9001:2015
Safety Standards: ISO 13849-1 PL c, ANSI/ISA 12.12.01
Export Packaging: IPPC wood crates with VCI protection
