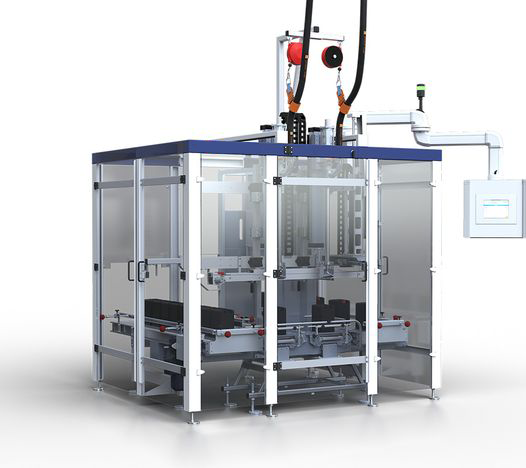

Canister filling machine
If you want to use a compact, highly integrated, high-performance automatic filling machine in a small area, then theCanister filling machineis exactly the right choice. The arrangement of the conveyo
- Brand： glzon
- Model： GZM
Product Introduction: GZM AutoCanister CCF-2000
Ultra-Precise Filling & Sealing for 1-20L Cans at 60 Cans/Minute
The GZM CCF-2000 automates filling, capping, and sealing of metal/plastic canisters with ±0.2% accuracy. Engineered for viscous products (up to 200,000 cP), this servo-driven system handles paints, lubricants, adhesives, and food pastes while ensuring 100% leak-proof seals and GMP/ATEX compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Canister Size | 1–20L (? 80–300mm, H 100–500mm) |
| Accuracy | ±0.2% (gravimetric) / ±0.5% (volumetric) |
| Viscosity Range | 50–200,000 cP (heated hopper optional) |
| Throughput | 40–60 cans/minute (1L standard) |
| Cap Types | Screw lids, press-on covers, trigger sprays |
| Material Contact | 316L SS / PTFE / Ceramic-coated pistons |
| Power | 380V/50Hz, 6.5 kW |
| Seal Integrity | <0.01% failure rate (tested per ASTM D3078) |
Core Technology Highlights
| Challenge | CCF-2000 Solution |
|---|---|
| High-Viscosity Filling | Servo piston + pressure-assisted nozzles |
| Dripping Prevention | Vacuum suction retraction + drip trays |
| Cap Torque Control | Digital torque wrench (5–50 Nm ±2%) |
| Cross-Contamination | Quick-change tooling (3-min swap) |
Performance vs. Manual Filling
| Metric | CCF-2000 | Manual Process | Improvement |
|---|---|---|---|
| Speed | 60 cans/minute | 8 cans/minute | 7.5× faster |
| Material Waste | 0.3% | 4–8% | 96% reduction |
| Seal Defects | 1 in 10,000 | 1 in 50 | 99.9% reduction |
| Labor | 1 operator | 4 workers | 75% cost saving |
Target Industries & Products
Paints & Coatings: Enamels, primers, varnishes
Chemicals: Solvents, sealants, degreasers
Food: Cooking oils, syrups, tomato paste
Adhesives: Silicone, polyurethane, epoxy resins
Smart Features
Self-Calibration: Auto-adjusts for density/temperature changes
Vision Inspection: Cap alignment check, fill level verification
IoT-Ready: Predictive maintenance alerts, OEE tracking
Hygienic Design: CIP/SIP capability (FDA 21 CFR 177.1520)
Why Choose CCF-2000?
? Zero Leaks: Triple-seal gaskets + pressure decay testing
? Explosion Safety: ATEX Zone 1/21 (II 2G Ex db IIC T6)
? Rapid Changeover: <10 min for can size/cap format
? Global Compliance: CE, UL, ISO 9001, EHEDG
Optional Upgrades
Nitrogen Flushing: O? < 0.1% for oxidation-sensitive products
Robotic Labeling: Integrated print-and-apply system
Track & Trace: UV/QR coding for serialization
Cryogenic Kit: -50°C filling for low-viscosity fluids
