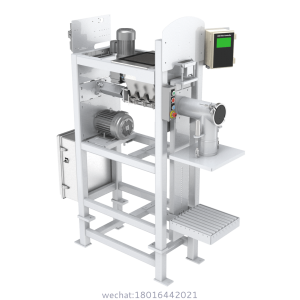

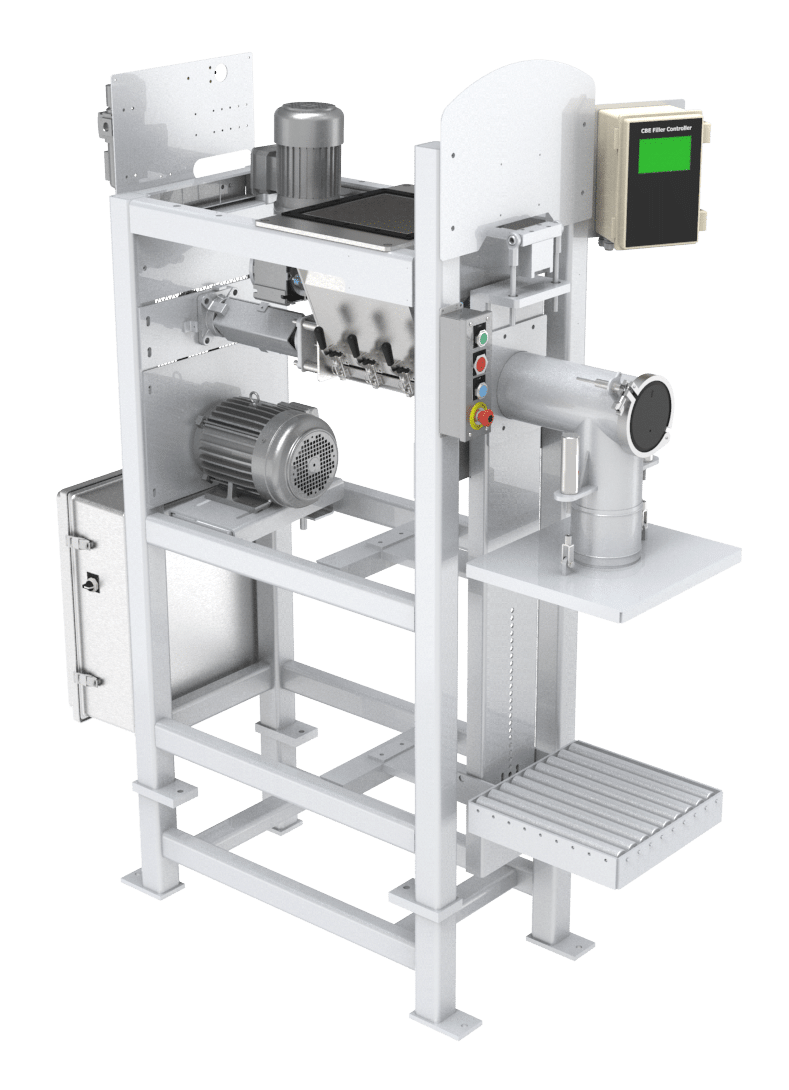

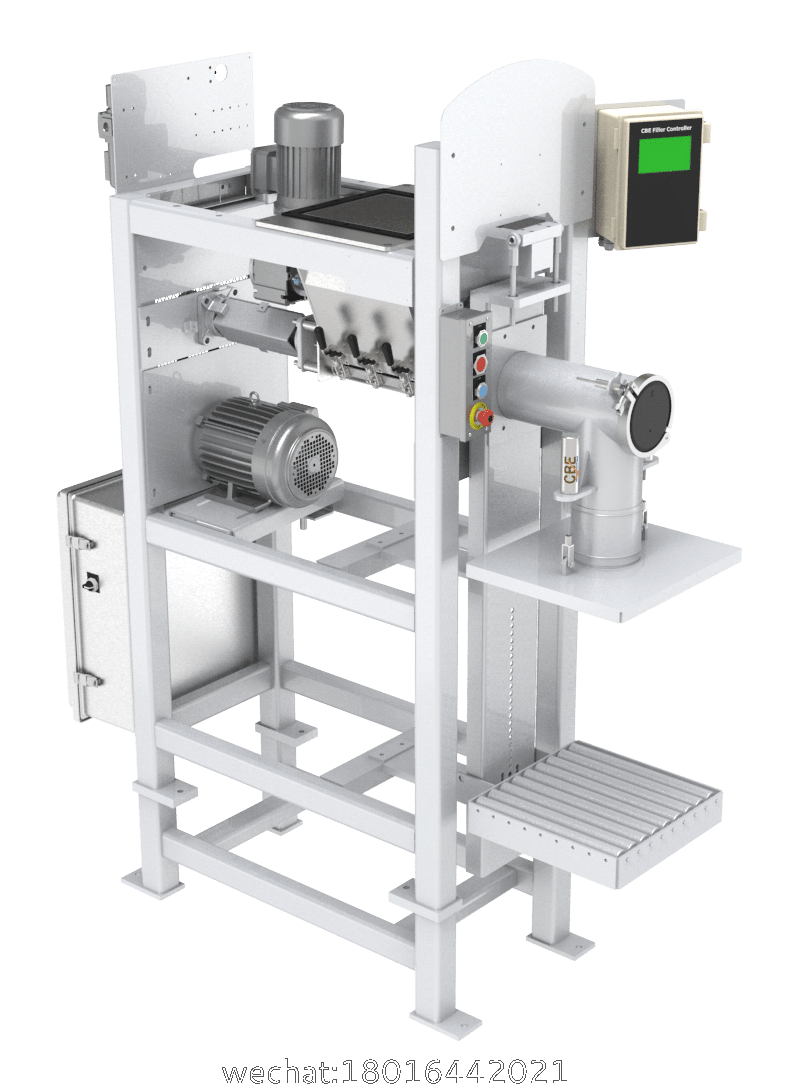

The Clean-Duty Auger Fed Box and Pail Filler can load pre-formed, open top rigid containers with a wide variety of powders requiring rapid and thorough cleanout between production runs. Model 2530 is
Rugged Precision for 5-60L Pails & 200L Drums
The Guangzhi FortiFill IDF-5000 delivers military-grade reliability in filling viscous fluids (up to 150,000 cP) like greases, adhesives, and solvents into pails, drums, or buckets. Engineered for 24/7 operation in harsh environments, it achieves ±0.2% accuracy at 40 containers/hour with ATEX/IECEx compliance and CIP-ready sanitation.
| Component | Robust Design | Industrial Benefit |
|---|---|---|
| Frame | 12mm carbon steel (ISO 12944 C5-M coating) | Resists chemical corrosion/impact damage |
| Filling System | Forged-steel piston + heated jacket (200°C) | Handles molten sulfur/tar |
| Pump Drive | Hydraulic transmission (150 bar max) | Zero-shear transfer of abrasive slurries |
| Control Cabinet | IP69K/NEMA 6P rated | Operates in washdown/explosive zones |
| Weighing Platform | 3,000 kg capacity (OIML Class 0.5) | ±0.1% repeatability with overload protection |
| Parameter | Pail Mode (5-60L) | Drum Mode (200L) |
|---|---|---|
| Accuracy | ±0.3% (mass flow) | ±0.2% (Coriolis) |
| Viscosity Range | 500–150,000 cP | 1–60,000 cP |
| Throughput | 40 pails/hour | 20 drums/hour |
| Power | 480V/60Hz, 18 kW | |
| Material Contact | Hastelloy C276/PTFE options | Handles HCl/HF acids |
| Air Supply | 120 L/min @ 0.8 MPa | |
| Temp Range | -40°C to +180°C |
| Metric | IDF-5000 | Standard Industrial Filler | Advantage |
|---|---|---|---|
| MTBF* | 8,000 hours | 3,500 hours | 128% more reliable |
| Container Damage | 0.008% | 0.7–1.2% | 99% reduction |
| Energy Efficiency | 0.10 kWh/container | 0.28 kWh/container | 64% savings |
| Maintenance | 90 min/month | 6 hrs/month | 75% less downtime |
| **Mean Time Between Failures (certified per ISO 12100)* |
Ultra-High Viscosity: Epoxy resins, gear greases (NLGI Grade 2)
Corrosives: 70% Sulfuric acid, HF etching solutions
Abrasives: Ceramic slurries, metal particle suspensions
Temperature Extremes: Molten wax (-30°C cryo option available)
EX-Proof Standard: ATEX Cat 2G/2D (Zone 1/21)
Triple Containment:
Primary: Sealed filling nozzle
Secondary: Spill tray with sensor
Tertiary: Vapor hood with 300 m3/hr extraction
Automated Safety Checks:
Grounding verification (<10 Ω)
LEL monitoring with auto-shutdown
Emergency nitrogen purge
? Armored Construction: 10-year structural warranty
? Self-Diagnostics: Predictive maintenance alerts for pumps/valves
? Global Compliance: CE, ASME BPE, PED 2014/68/EU
? Adaptable: Quick-change kits for pail/drum/IBC formats
Explosion-Proof Kit: IECEx T6 certification (gas/dust)
Cryogenic Jacketing: For LNG/liquid nitrogen filling (-196°C)
Robotic De-palletizing: FANUC M-2000iA/1700L integration
AI Quality Control: Vision-based fill level/cap inspection
.
