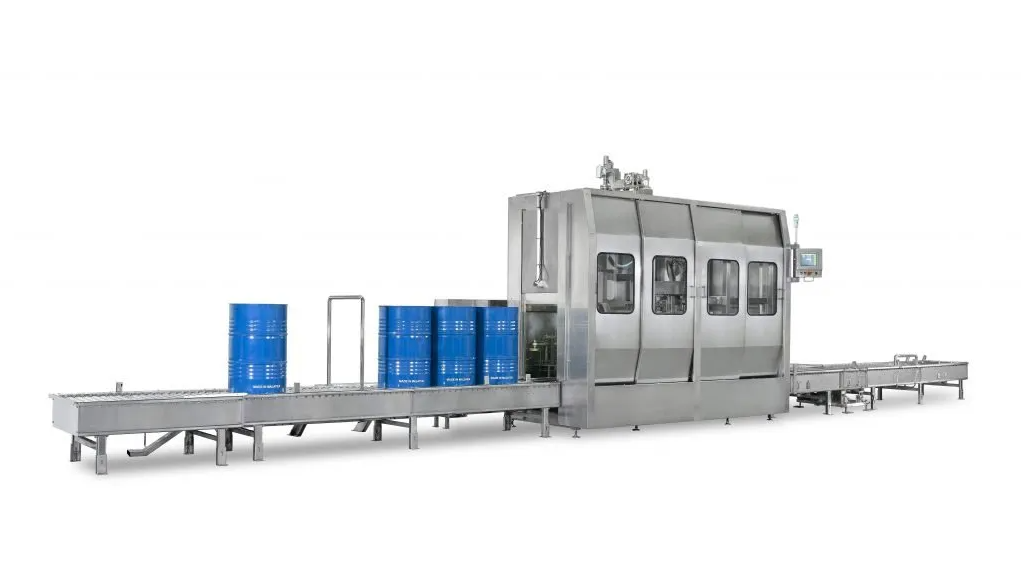

The empty drums are fed from the infeed conveyor and reach the automatic filler via an accumulating roller conveyor. An assignment unit separates the single drums, the first drum is transported into t
End-to-End Automation for 200L Drum Operations
The Guangzhi AutoDrumPro ADS-6000 integrates robotic loading, precision filling (±0.1%), capping, labeling, and palletizing in one seamless system. Engineered for chemicals, lubricants, and food-grade oils, it achieves 60 drums/hour with zero manual intervention, featuring ATEX/ISO compliance and vapor recovery for hazardous environments.
| Parameter | Specification | Competitor Benchmark |
|---|---|---|
| Throughput | 30–60 drums/hour (200L standard) | 20–40 drums/hour |
| Accuracy | ±0.1% (Coriolis mass flow) | ±0.5% |
| Filling Range | 100–220 L | 50–200 L |
| Power | 380V/50Hz, 18 kW | 25–30 kW |
| Vapor Recovery | >99% efficiency (carbon/condensate) | 85–90% |
| Material Contact | 316L SS/PTFE (FDA/EC1935) | 304 SS |
| Footprint | 12 × 3.5 m (linear layout) | 15+ m |
| Changeover Time | ≤15 min (recipe-driven) | 30–45 min |
Robotic Arm: 150 kg payload (FANUC/ABB)
Filling Station: Dual-nozzle with drip tray
Weighing System: 1,000 kg load cells (OIML Class 0.5)
Capping Unit: Servo-driven bung applicator (20–50 Nm torque)
Vapor Hood: Nitrogen inerting + LEL monitoring
Labeler: Thermal-transfer printer (GHS/ISO symbols)
Palletizer: Layer-forming robot (EURO/CHEP pallets)
| Metric | ADS-6000 | Semi-Auto | Advantage |
|---|---|---|---|
| Labor | 0 operators | 1–2 operators | 100% reduction |
| Spill Loss | <0.02% | 0.5–1.5% | 98% less waste |
| OEE (Overall Equipment Effectiveness) | 95% | 75–80% | 20% higher uptime |
| ROI Period | 8–12 months | 18–24 months | 2× faster payback |
Chemicals: Solvents, acids, adhesives (viscosity ≤10,000 cP)
Food & Pharma: Edible oils, glycerin, sanitizers (GMP/3-A)
Energy: Lubricants, gear oils, transformer fluids
Paints: Resins, thinners, coatings
HMI: 15" touchscreen with 3D simulation
Connectivity: OPC-UA, MODBUS TCP, SAP integration
Data Analytics: Real-time OEE, batch reports (CFR 21 Part 11)
Remote Diagnostics: Predictive maintenance alerts
? Zero Emission Design: Closed-loop filling + vapor recovery (EPA/REACH)
? Explosion Safety: ATEX Zone 1 (II 2G Ex db IIC T6)
? Flexible Containers: Steel/plastic drums, IBCs (quick-change kit)
? Global Compliance: CE, UL, ASME BPE, ISO 80079
Leak Testing: Vacuum decay or pressure hold
Nitrogen Purging: O? < 0.1% for oxidizable products
Robotic Pallet Stretch Wrapper: Integrated turntable system
AI Vision Inspection: Cap seal integrity, label verification
APPLICABLE BARREL TYPE
